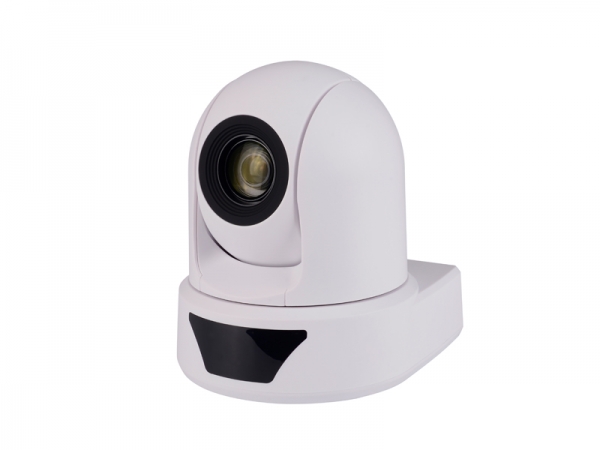

HD IP Conference Camera PV212IP

KEY FEATURES

●Effective Pixels: 1/2.8" inch high quality CMOS, 1080P 2.1 Megapixels

●Zoom: 12X Optical Zoom f=4.7~56mm 12X Digital Zoom

●Video Out: RJ45, HD-SDI(3G), HDMI

●255 Preset Positions

●Support SONY VISCA, PELCO P/D

●IR Remote Control, RS232, IR Transparent Transmission

●Horizontal Angle: ±170°; Vertical Angle: -30° to +90°

●Adopt 2D and 3D DNR Motion Estimation Algorithm, Low Noise CMOS Sensor

●Adopt Quiet Motor, Servo Algorithm for PTZ Control, Precise location(±0.1°)

●Multiple Output: Network Interface with H.265 Algorithm, HDMI, (3G)HD-SDI

●Horizontal Speed: 0.1-100°/s; Vertical Speed: 0.1-60°/s

●1080P60/50/30/25,1080I60/50,720P60/50 Multiple Video Formats Output(1080P59.94/29.94 optional)

● Widely Been Used in Video Conference System, Remote Education, Telemedicine, Church, Courts, Media Centers.

● Network Interface with Most Advanced H.265/H.264 Algorithm

●Enter/Exit Menu through IR Remote

●340°Horizontal Angle; 120° Vertical Angle

●255 Preset Position

●IR Remote Control，RS-232C Control，HDBaseT Control

●VISCA, PELCO P/D Protocol

●IR Transparent Transmission，Able to Receive the Video Conference Terminal‘s IR Control Signal

●Firmware Update Through RS-232C Port

●Desktop, Ceiling Mount, Wall Mount

●Compatible with Most Kinds of Video Terminal in the Market

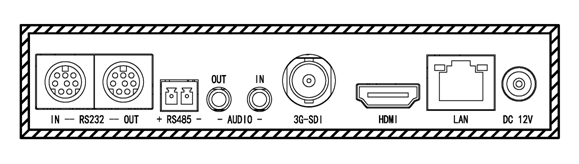

Backboard object

Parameter

Mode	PV212IP
Optical Parameter
Sensor	1/2.8 inch high quality HD CMOS sensor
Effective Pixels	16：9 2.1 Megapixels
Video signal(SDI & HDM	1080P60/50/30/25 、1080I/60/50、720P60/50
Optical Lens	12X optical zoom lens,F1.6～F3.5,f=4.7mm～56mm 12X digital lens
Horizontal View Angle	62°(W)～5.2°(T)
Minimum illumination	0.1Lux
White Balance	Auto
Focus	Auto/Manual
Aperture	Auto/Manual
Shutter	Auto
Noise-Signal Ratio	>50dB
Input/Output interface
HD video interface	HDMI、 HD-SDI(3G)、RJ45
Control signal interface	8 mini DIN 2pin3.81(RS485)
Control signal format	Start bit：1bit、data bit：8bit、stop bit：1bit、baud rate：9600/4800/2400bps
Power interface	HEC3800 power socket
Audio interface	1 channel, Line In, 3.5mm audio interface
Encoding	H.264Baseline、Main Profile、High profile、H.265 Mainfile
Image resolution	Main stream19201080@30fps、1280720@30fps，Sub stream720576@30fps、640480@30fps
Video compression rate	32kbps-16Mbps continuing adjust，support CBR/VBR
Subtitles superimposed	Support channel name、date and time、code flow information superposition、superposition position can be adjusted
Data storage	Video,picture file
Storage mechanism	Manual、Auto（Cycle、timing、alarm switch、motion detection）
Protocol support	TCP/IP、UDP、RTP、RTSP、RTMP、RTCP、HTTP、DNS、DHCP、FTP、NTP、SMTP
ONVIF protocol	Standard ONVIF protocol
Computer client and mobile phone	Support IE8.0 and above browers
Mechanical Parameter
Pan-Tilt	Horizontal Angle: ±170°(Maximum speed: 100° /s);
	Vertical Angle: -30° to +90°(Maximum speed: 60° /s)
	Preset accuracy：0.1°
	No. of Preset Positions:255
Colour	White, Black
Power adapter	AC110V-AC220V switch DC12V/2A
Input voltage	DC12V(DC11.5-DC12.5V)
Power dissipation	18W(Max)
Storage Temperature	-10℃～+60℃
Working Temperature	0℃～45℃
Dimensions	155mmX176mmX190mm
Weight（Net weight）	2.5KG(1.3KG)
Environment	Indoor
