KEY FEATURES
●Effective Pixels: 1/2.8" inch high quality CMOS, 1080P 2.1 Megapixels
●Zoom: 20X Optical Zoom f=4.7~94mm
●Video Out: USB3.0, HDMI,
●255 Preset Positions
●Support SONY VISCA, PELCO P/D
●IR Remote Control, RS232, IR Transparent Transmission
● Horizontal Angle: ±170°; Vertical Angle: -30° to +90°
●Adopt 2D and 3D DNR Motion Estimation Algorithm, Low Noise CMOS Sensor
●Adopt Quiet Motor, Servo Algorithm for PTZ Control, Precise location(±0.01°)
●IR Remote Control Camera OSD Menu
●Horizontal Speed: 0.1-100°/s; Vertical Speed: 0.1-60°/s
●1080P60/50/30/25~640X480P60/50/30/25 Multiple Video Formats Output
●Preset Calling Speed: 100°/s; Vertical Speed: 60°/s
●Widely Been Used in Video Conference System, Remote Education, Telemedicine, Church, Courts, Media Centers.
●Enter/Exit Menu through IR Remote
●340°Horizontal Angle; 120° Vertical Angle
●IR Remote Control,RS-232C Control
●VISCA, PELCO P/D Protocol
●IR Transparent Transmission,Able to Receive the Video Conference Terminal‘s IR Control Signal
●Firmware Update Through RS-232C Port
●Desktop, Ceiling Mount, Wall Mount
●Compatible with Most Kinds of Video Terminal in the Market

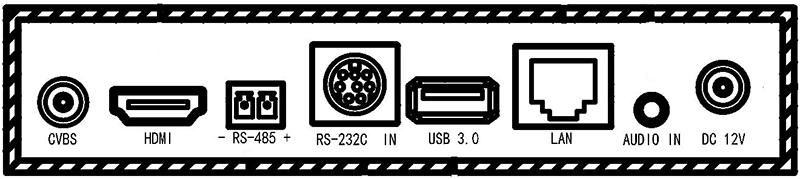

Backboard object
Parameter
Mode
|
PV320U3
|
Optical Parameter
|
|
Sensor
|
1/2.8" inch Exmore CMOS
|
Effective Pixels
|
16:9 2.1 Megapixels
|
Resolution
|
1080p60/50/30/25/10,720p60/50/30/25
|
Optical Lens
|
20X Optical Zoom f=4.7~94mm
|
Horizontal View Angle
|
55.4°(W)~2.9°(T)
|
Min illumination
|
0.1Lux
|
White Balance
|
Auto, Manual
|
Focus
|
Auto, Manual
|
Aperture
|
Auto
|
Shutter
|
Auto
|
Noise-Signal Ratio
|
≥50db
|
Input/Output interface
|
|
HD video interface
|
HDMI、USB3.0、RJ45(optional)、CVBS
|
Control signal interface
|
8 mini DIN
|
Control signal format
|
Baud rate:9600/4800/2400bps
|
Power interface
|
HEC3800 power socket
|
Support operating system
|
Windows XP,Vista,7,8, Windows 10, Mac OS X, Linux
|
USB protocol
|
UVC1.1
|
USB interface PTZ control
|
Support PTZ control
|
Mechanical Parameter
|
|
Pan-Tilt
|
Horizontal Angle: ±170°(Maximum speed: 100° /s);
|
Vertical Angle: -30° to +90°(Maximum speed: 60° /s)
|
|
Preset accuracy:0.1°
|
|
No. of Preset Positions:255
|
|
Colour
|
Steel gray
|
Power adapter
|
AC110V-AC220V turn to DC12V/2A
|
Input voltage
|
DC12V(DC11.5-DC12.5V)
|
Power dissipation
|
15W(Max)
|
Storage Temperature
|
-10℃~+60℃
|
Working Temperature
|
0℃~45℃
|
Dimensions
|
(Length)155 × (Width)186 x (Height)172mm
|
Weight(Net weight)
|
2.5KG(1.3KG)
|
Environment
|
Indoor
|
