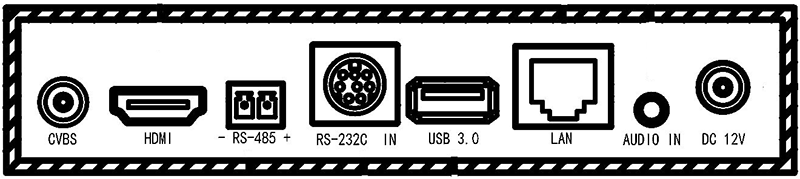

Backboard object
Parameter
Mode |
PV301U2 |
Optical Parameter |
|
Sensor |
1/2.8" inch Exmore CMOS |
Effective Pixels |
16:9 2.1 Megapixels |
Video Format |
USB2.0: 1080p30,720p30, 640X480p30, 320X240p30,
|
Optical Lens |
1X optical zoom lens,10 digital zoom lens f=2.1mm |
Horizontal View Angle |
105°wide-angel lens no distortion |
0.1Lux |
|
White Balance |
Auto/indoor/outdoor/Manual |
Focus |
Auto/Manual |
Noise-Signal Ratio |
>50dB |
Input/Output interface |
|
HD video interface |
USB 2.0 |
Control signal interface |
8 mini DIN(RS232)/3.81 pin(RS485) |
Control signal format |
Start bit:1bit、data bit:8bit、stop bit:1bit、baud rate:9600/4800/2400bps |
Power interface |
HEC3800 power socket |
Support operating system |
Windows 7, Windows 10, Linux |
USB protocol |
UVC1.1 |
Encoding |
MPEG/YUY2 |
USB interface PTZ control |
USB interface PTZ control |
Mechanical Parameter |
|
Pan-Tilt |
Horizontal Angle: ±170°(Maximum speed: 100° /s); |
Vertical Angle: -30° to +90°(Maximum speed: 60° /s) |
|
Preset accuracy:0.1° |
|
No. of Preset Positions:255 |
|
Colour |
Steel gray |
Power adapter |
AC110V-AC220V switch DC12V/2A |
Input voltage |
DC12V(DC11.5-DC12.5V) |
Power dissipation |
15W(Max) |
Storage Temperature |
-10℃~+60℃ |
Working Temperature |
0℃~45℃ |
Dimensions |
(Length)155 × (Width)176 x (Height)170mm |
Weight(Net weight) |
2.5KG(1.3KG) |
Environment |
Indoor |
